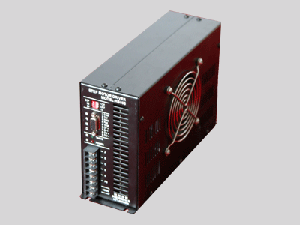

HB505V
5-phase hybrid
stepping driver
Ò»¡¢Features
-
AC40¡«110V Power Supply
-
Max 5A Phase Current Output
-
Robust to Motor's Parameters
-
Full/Half step Switch
-
Disable control signal (Free)
-
Holding Position when repowered
-
Static Half Current Lock
-
Isolated Input £¨Photo-coupler£©
|
 |
¶þ¡¢Adapter Motors
86¡¢90¡¢110BYG
Series 5-Phase hybrid stepper motors
Èý¡¢Inputs & Outputs
|
Label
|
Function
|
Note
|
|
CP+ |
Pulse signal + |
Optocoupler Input resistance 390 ¦¸, Rated 10mA, 10us minimum pulse width |
|
CP- |
Pulse signal - |
|
CW+ |
Direction signal + |
Optocoupler Input resistance 390 ¦¸, Rated 10mA,
ON: CW direction; OFF: CCW deirection |
|
CW- |
Direction signal - |
|
10/20 |
Full/Half Step Control
|
ON: Half Step; OFF: Full Step
|
|
FRE |
Disable Control
|
OFF: enable; ON: disable |
|
POW |
Power Indicator OC Output
|
Max 50V/20mA, when being normal,Optocoupler is ON
|
|
TIM |
Phase Origin Output
|
Max 50V/20mA, when being Origin, Optocoupler is ON |
|
COM |
Common Ground |
Common Ground of
10/20¡¢FRE¡¢POW¡¢TIM |
|
POWER |
Power Indicator Led |
Red |
|
TIMING |
Phase Indicator Led |
Green |
|
A |
A Phase Output
|
|
|
B |
B Phase Output
|
|
|
C |
C Phase Output
|
|
|
D |
D Phase Output |
|
|
E |
E Phase Output
|
¡¡ |
|
AC80V |
Power Supply |
Rated AC80V£¨AC40¡«110V£© |
Note:
non 5V signal request corresponding increase in external resistor about
10mA Current)
ËÄ¡¢DIP SETTING
|
1CP 2CP |
Pulse Mode |
1CP
1-clk,CP+/CP-: Pulse Input; CW+/CW-: Direction(Level)
2CP£º
2-clk,CP+/CP-: CW Pulse ; CW+/CW-: CCW Pulse |
|
I/2 OFF |
Static Half Current Lock |
I/2£ºStatic Half Current Lock
OFF£ºDISABLE |
|
10
20 |
Full/Half step Switch |
10£ºFULL
20£ºHALF |
Îå¡¢Connection
¡¡
Áù¡¢Dimensions
|
