130BC3100 Series Variable Reluctance Stepper Motors

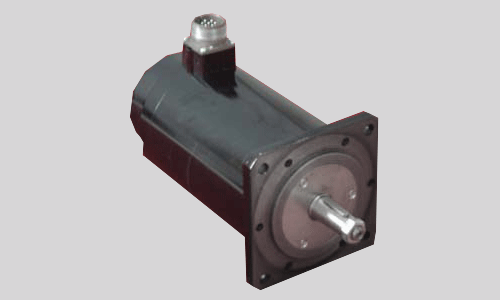

Appearance
 |
130BC3100 series |
| |
| Technical Parameters |
Model |
Current |
R |
L |
Holding Torque |
Step Angle |
No Load Start Frequency |
No Load Operation Frequency |
Inertia |
Weight |
A |
Ω |
mH |
N.m |
Degree |
KHz |
KHz |
Kg.cm^2 |
Kg |
130BC3100 |
8 |
0.28 |
11 |
12 |
0.6/1.2 |
1.5 |
15 |
10.5 |
10 |
130BC3100A |
10 |
0.3 |
16.5 |
22 |
0.6/1.2 |
1.25 |
15 |
18.2 |
18 |
130BC3100B |
10 |
0.26 |
13 |
18 |
0.6/1.2 |
1.3 |
15 |
15 |
16 |
|
| |

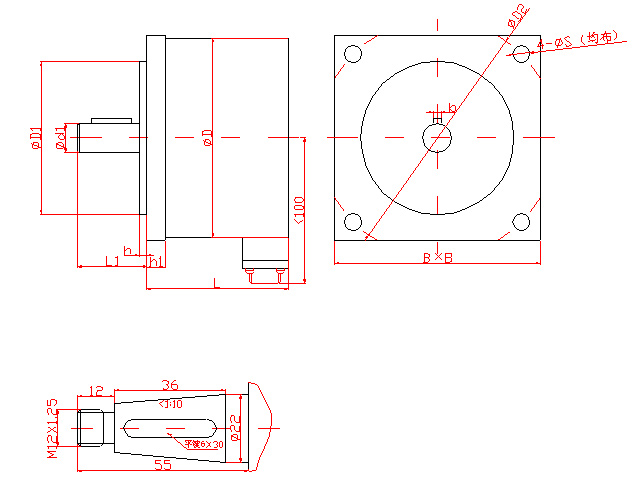

| Dimensions |
|
|
Model |
D |
B |
d1 |
L1 |
b |
D1 |
h |
h1 |
L |
D2 |
S |
M |
130BC3100 |
132 |
134 |
22錐1：10 |
55 |
6 |
100 |
5 |
12 |
168 |
155 |
11 |
M12*1.25 |
130BC3100A |
132 |
134 |
22錐1：10 |
55 |
6 |
100 |
5 |
12 |
235 |
155 |
11 |
M12*1.25 |
130BC3100B |
132 |
134 |
22錐1：10 |
55 |
6 |
100 |
5 |
12 |
209 |
155 |
11 |
M12*1.25 |
|
| |
| Connection |
1,2-----A,A'
3,4-----B,B'
5,6-----C,C'
7 -----Earth Ground |
|
