90BYG Series Hybrid Stepper Motors

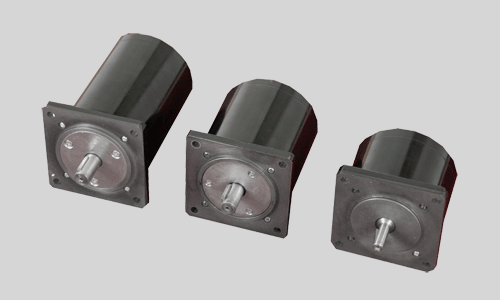

Appearance
 |
90BYG series |
| |
| Technical Parameters |
Model |
Phase |
Current
|
L |
Step Angle |
Hold Torque |
No Load Start Frequency |
No Load Operation Frequeency |
Inertia |
Weight |
A |
mH |
degree |
N.m |
KHz |
KHz |
Kg.cm^2 |
Kg |
90BYG250A |
2 |
4.0 |
4 |
0.9/1.8 |
2.1 |
2.5 |
20 |
1.2 |
2.2 |
90BYG250B |
2 |
4.0 |
8 |
0.9/1.8 |
4.2 |
2.5 |
20 |
2.4 |
3.6 |
90BYG250C |
2 |
4.0 |
12 |
0.9/1.8 |
6.3 |
2.5 |
20 |
3.6 |
4.8 |
90BYG350A |
3 |
3.0 |
3.2 |
0.6/1.2 |
2.1 |
2.0 |
15 |
1.2 |
2.2 |
90BYG350B |
3 |
3.0 |
4 |
0.6/1.2 |
4.2 |
2.0 |
15 |
2.4 |
3.6 |
90BYG350C |
3 |
3.0 |
5.2 |
0.6/1.2 |
6.3 |
2.0 |
15 |
3.6 |
4.8 |
90BYG550A |
5 |
3.0 |
3.0 |
0.36/0.72 |
2.1 |
3.0 |
30 |
1.2 |
2.2 |
90BYG550B |
5 |
3.0 |
3.6 |
0.36/0.72 |
4.2 |
3.0 |
30 |
2.4 |
3.6 |
90BYG550C |
5 |
3.0 |
4.2 |
0.36/0.72 |
6.3 |
3.0 |
30 |
3.6 |
4.8 |
90BYG5200B |
5 |
3.0 |
/ |
0.09/0.18 |
5.0 |
6.0 |
100 |
3.84 |
3.5 |
|
|
| Dimensions |

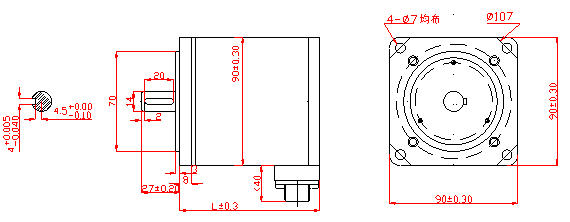

90BYG250/90BYG350/90BYG550

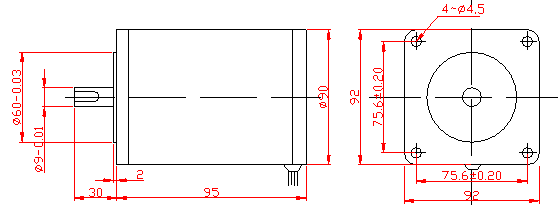

90BYG5200B
|
|
型號(hào) |
L
|
90BYG250A/90BYG350A/90BYG550A |
69 |
90BYG250B/90BYG350B/90BYG550B |
98 |
90BYG250C/90BYG350C/90BYG550C |
128 |
|
| |
| connection |
Model |
Earth |
A |
A' |
B |
B' |
C |
C' |
D |
D' |
E |
E' |
Remarks |
90BYG250
|
Color |
/ |
Red |
Yellow |
Green |
Blue |
|
|
|
|
|
|
|
Pin No. |
5 |
1 |
2 |
3 |
4 |
|
|
|
|
|
|
5 Pins |
90BYG350
|
3 Lines |
|
1 |
|
3 |
|
5 |
|
|
|
|
|
7 Pins |
7 Lines |
7 |
1 |
2 |
3 |
4 |
5 |
6 |
|
|
|
|
7 Pins |
90BYG550
|
5 Lines |
7 |
1 |
|
2 |
|
3 |
|
4 |
|
5 |
|
7 Pins |
10 Lines |
12 |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
12 Pins |
90BYG5200B |
Color |
Red |
Yellow |
Blue |
Black |
White |
|
|
|
|
|
|
|
Phase |
A |
B |
C |
D |
E |
|
|
|
|
|
|
|
|
| |
